A major step toward zero-emissions driving just rolled into a garage. Many new electric vehicle enthusiasts across the country (thought the world) have officially received the base vehicle for a full electric conversion. This classic ride is usually lightweight, structurally sound, and free of complicated electronics. I mean that’s the perfect candidate for transformation. Rather than scrap an aging gas guzzler, this project also more notably reimagines it as a clean-running electric car.
Why Convert Instead of Buy New?
Electric conversions offer a sustainable alternative to purchasing a factory EV. Converting an existing internal combustion engine (ICE) vehicle keeps a perfectly usable chassis out of the landfill and eliminates tailpipe emissions entirely. It’s about upcycling with purpose—and electrifying history.

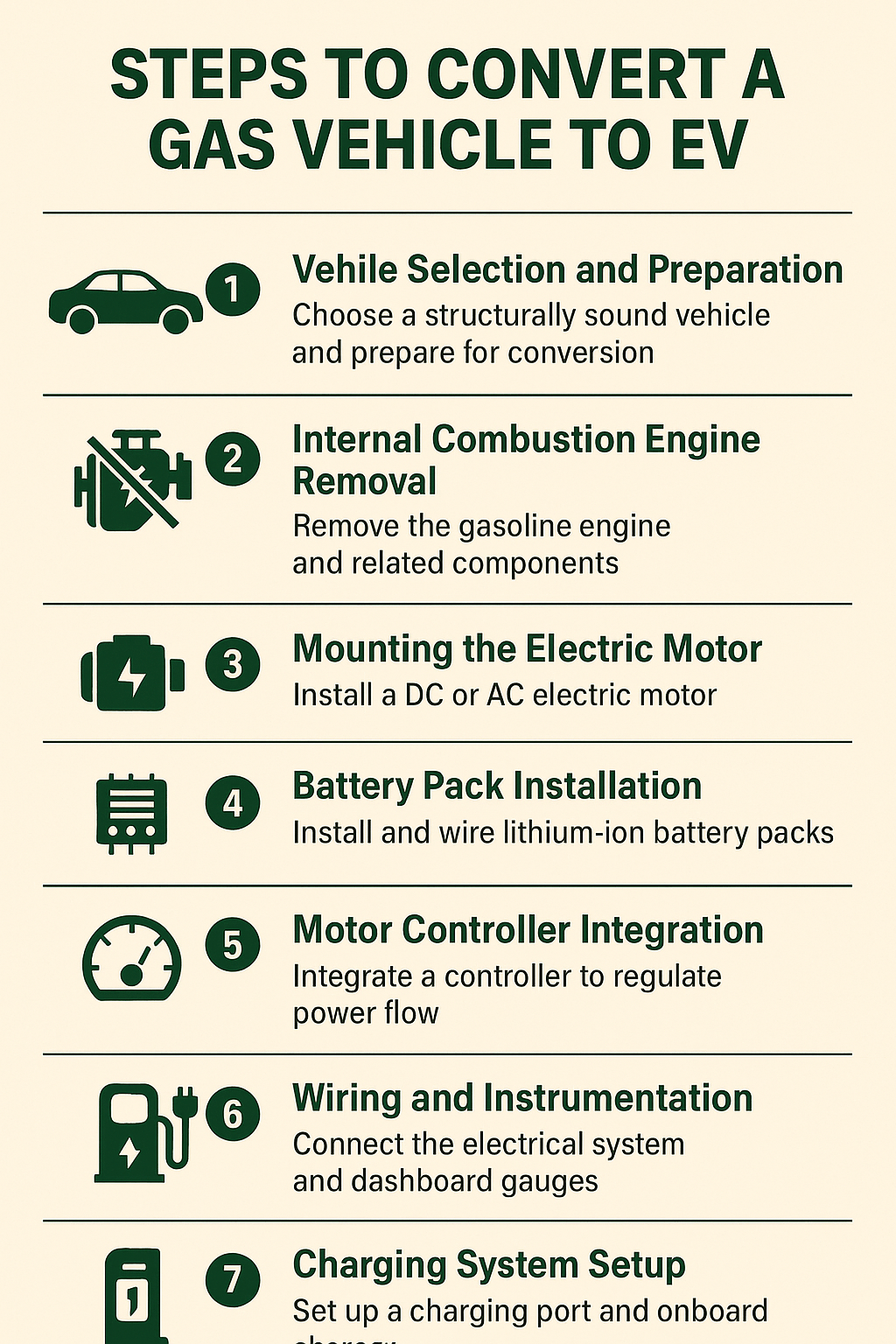

Step-by-Step Breakdown: Converting a Gas Vehicle to EV
1. Vehicle Selection and Preparation
The chosen vehicle must be in good structural condition—rust-free frame, solid suspension, and a reliable drivetrain (at least until it’s removed). Older manual-transmission models are essentially ideal because they simplify the conversion process. Automatic transmissions require additional electronic integration.
2. Internal Combustion Engine Removal
The first hands-on step: removing the gasoline engine, exhaust system, radiator, fuel tank, and other ICE components. This clears space for the motor, controller, battery pack, and wiring. It also reduces overall vehicle weight.
3. Mounting the Electric Motor
Next comes the electric motor. Most conversions use a DC or AC electric motor, depending on budget and performance goals. It’s typically mounted using an adapter plate to mate with the original transmission or directly coupled to the driveshaft for simplicity. Torque is instantaneous—no more revving necessary.
4. Battery Pack Installation
Battery packs are most certainly the heart of the conversion. Lithium-ion is the gold standard, offering better energy density and life cycle than lead-acid. Packs are most commonly distributed for weight balance. Therefore they are often placed in the trunk and also under the hood. Total voltage typically ranges from 96 to 144 volts in DIY builds.
5. Motor Controller Integration
The motor controller acts as the brain between the accelerator pedal and the electric motor. It also regulates power flow based on driver input and battery capacity. A programmable controller also lets you fine-tune torque curves and regenerative braking behavior.
6. Electrical Wiring and Instrumentation with the Conversion
Electrical wiring ties together all the components: motor, controller, batteries, charging port, and dashboard gauges. Safety is crucial—high-voltage fuses, relays, and circuit breakers are installed throughout. Voltmeters, ammeters, and state-of-charge displays replace traditional fuel and oil gauges.
7. Electrical Charging System Conversion Setup
The onboard charger determines how the vehicle replenishes its batteries. Most conversions use a Level 2 charger (240V) for faster charging at home. Therefore, an SAE J1772 plug ensures compatibility with public stations.
8. Final Testing and Certification
Before hitting the road, the vehicle also undergoes rigorous testing. For that’s braking, acceleration and also range estimation. In addition, local or state authorities may also require safety inspections or emissions exemptions. Once cleared, it’s legally road-ready.
What an Electrical Conversion Means for Green Driving
These projects most definitely highlight how electric vehicle conversions are retrofitting classic vehicles with modern EV technology. It also bridges the past and the future. It’s most certainly hands-on sustainability that also reduces lifecycle emissions and more importantly extends the usable life of existing cars. With every bolt tightened and wire crimped, it most certainly proves that going electric isn’t just for automakers. That’s because it’s for anyone ready to make change from the ground up.
Finally, more updates coming soon on battery configuration, drive testing, and also performance benchmarks. This is one ride to watch.
